First sign-in to the interface

The device is controlled from a web interface. It opens in the browser, from any computer on the same network.

In the browser, type the Gateway UI address you noted during installation (chapter 6). It looks like this:

http://device-IP-address:3000

For example: http://192.168.10.150:3000

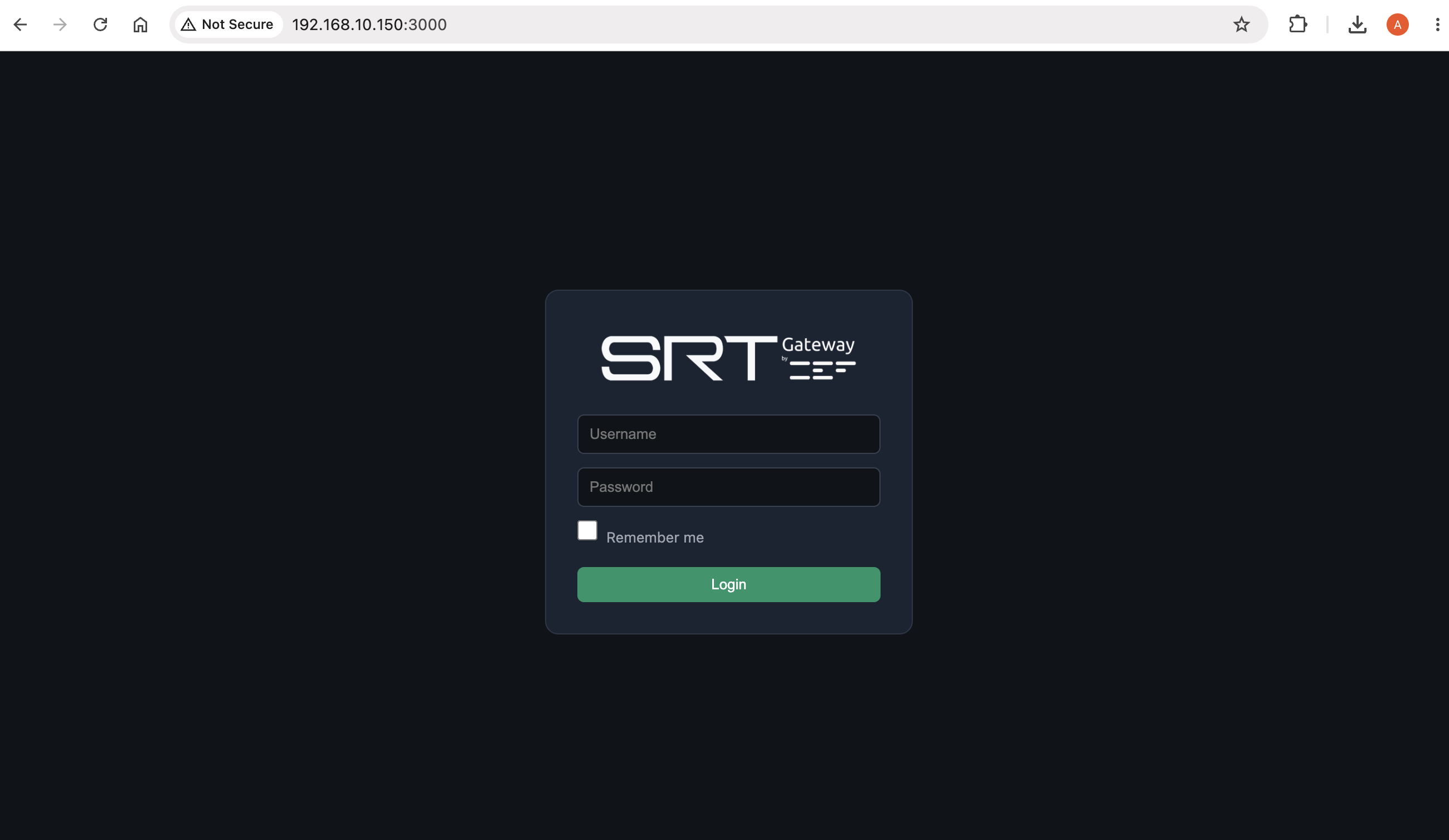

A sign-in screen appears. Enter your username and password and sign in.

Once inside, you will see the control panel. Each area has a function:

1 2 3 4 5 6 7

• Status and session — indicates whether the device is streaming and lets you sign out.
• Stream Control — starts and stops all configured streams, restarts the input signals and reboots the device.
• Network — opens the device network configuration.
• SRT / HLS Input — this SRT field receives MPTS-type signals; the programs are displayed.
• UDP Output — the output IP address and the port of the UDP multicast and unicast.
• Detected Programs — the tool visually detects the programs of each stream.
• Preview — the live video inside the browser, corresponding to the selected program.
